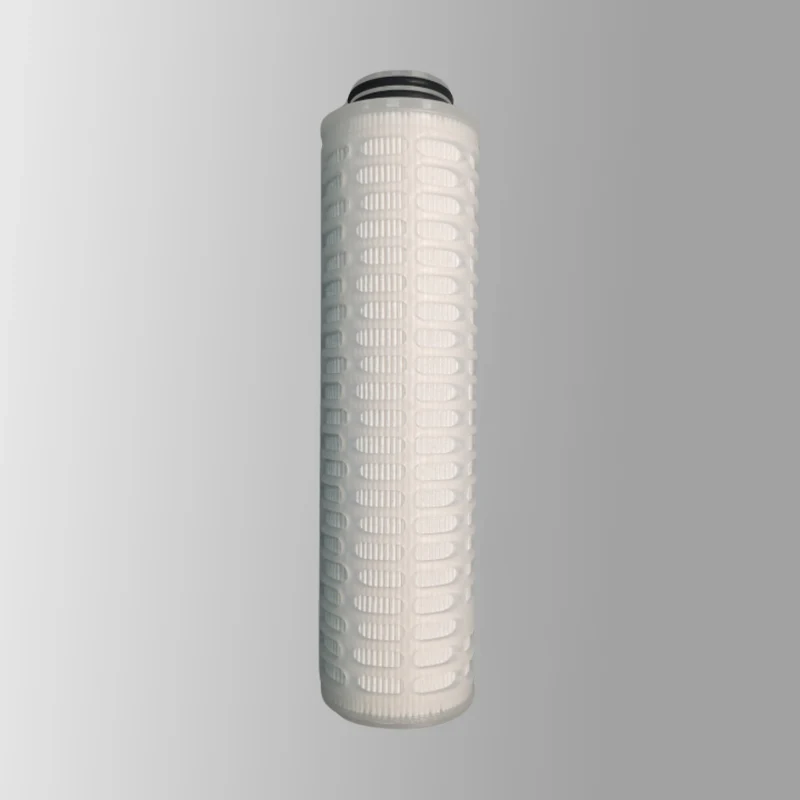

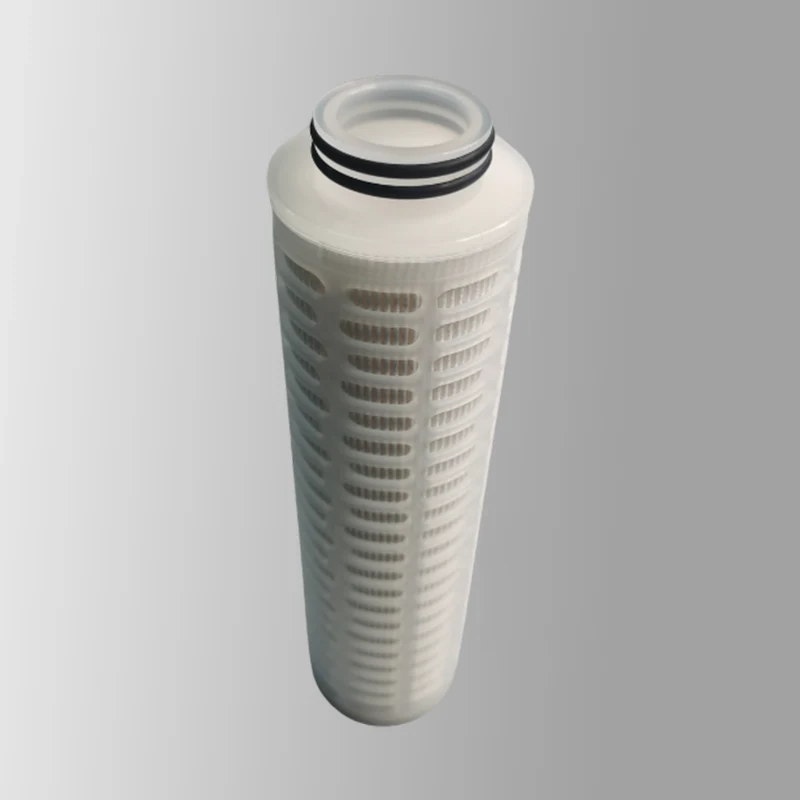

Longer Service Lifegeneral Filtration-Nylon Filter Cartridge

Typical Applications

·Bottled Water

·Process Water

·Vinegar

·Aqueous solutions

·Beer, Wine and Spirits

·Juice,Soft Drinks,Edible Oils

·Bulk Chemicals

·Pharmaceutical intermediates

Length:

5 to 40 inches (12.7 to 101.6 cm) nominal

Outside Diameter:2.70 inches (7.0 cm) nominal

Integrity Test Specifications

Wetted membrane

Maximum Operating Parameters

Differential Pressure

·Forward 50 psid (3.4 bard) at 20℃(68 °℉)

·Reverse 40 psid (2.7 bard) at 20 ℃(68 °℉)

·Operating Temperature 82 ℃(180 °℉) at 10 psid(0.69 barg) in water

·Recommended ChangeoutPressure:35psid(2.4barg)

Sanitization/Sterilization

Filtered Hot Water 90 ℃(194 °℉), 30 minutes, multiple

cycles, max 3 psid forward flow

Autoclave 121 ℃ (250 °F), 30 min, multiple cycles

In-line Steam 135℃(275°℉),30 min,multiple cycles

Construction Materials

Filter Membrane:Nylon6,6 Membrane

Media Support: Polypropylene

End Caps:Polypropylene

Inner Core:Polypropylene

Outer Cage:Polypropylene

Sealing Method:Thermal Bonding

O-rings: Buna, Viton(or FKM), EP, Silicone,

Encapsulated Silicone,

Encapsulated Viton (or FKM)

Toxicity

All plastic parts meet the specifications

for biological safety per USP Class VI-121'C for plastics.

Food Safety Compliance

Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21CFR.

Materials used to produce filter media and hardware are safe for use in contact with foodstuffs in accordance with EU Directives 10/2011

Ordering Information
