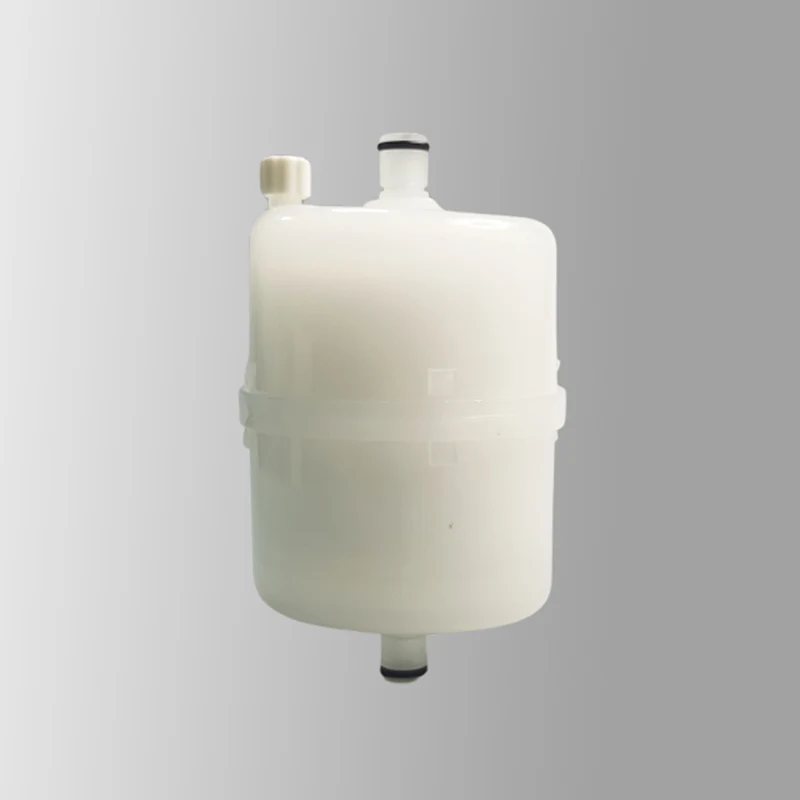

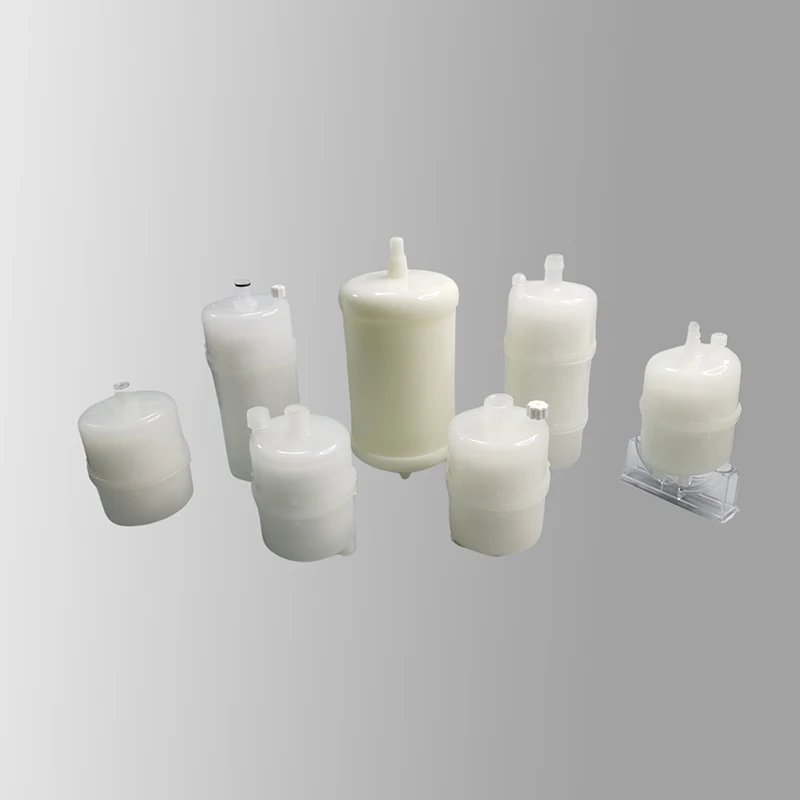

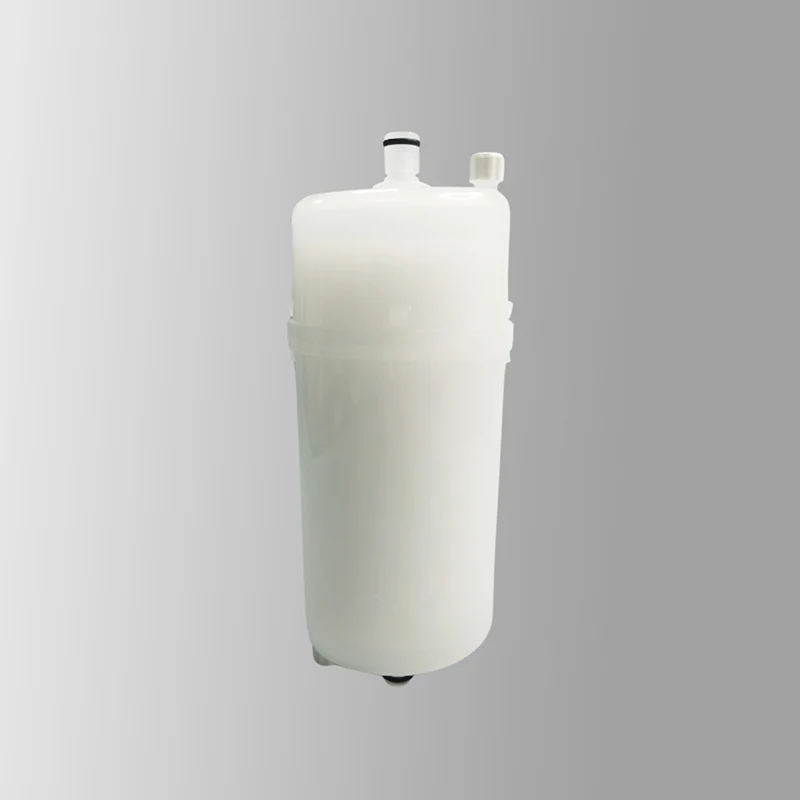

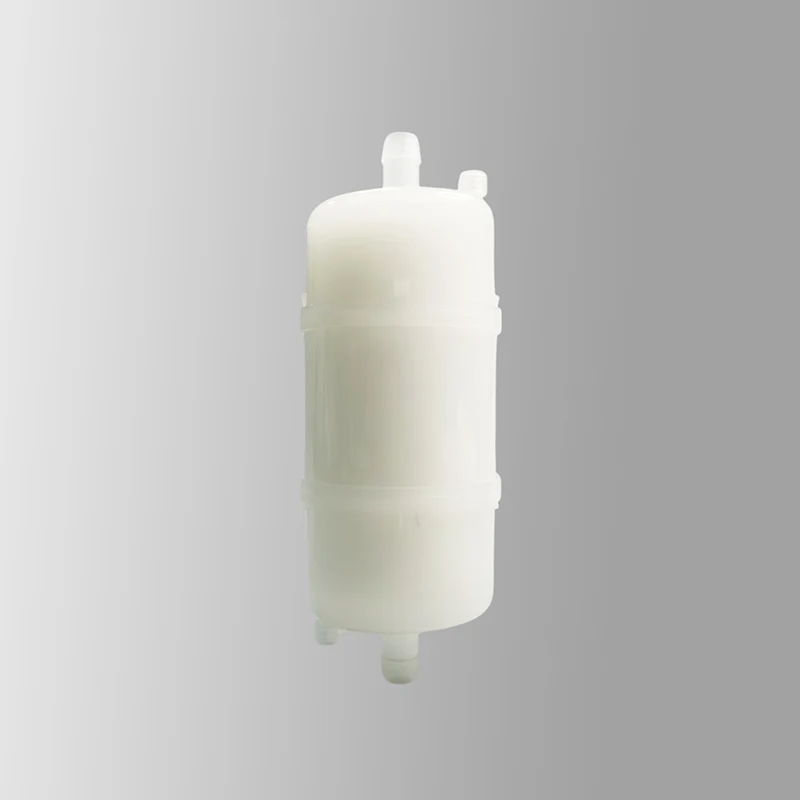

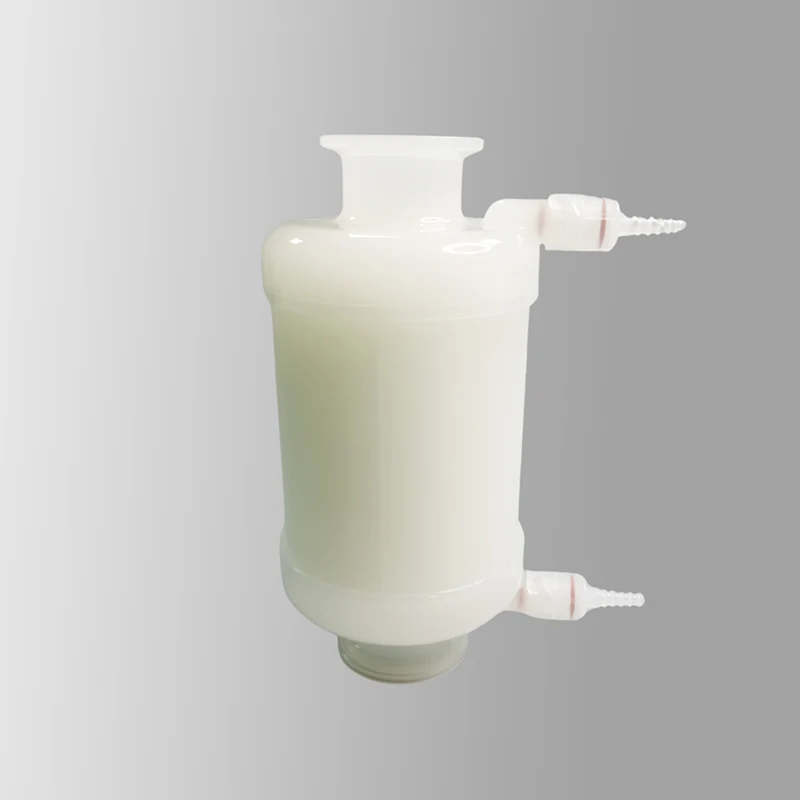

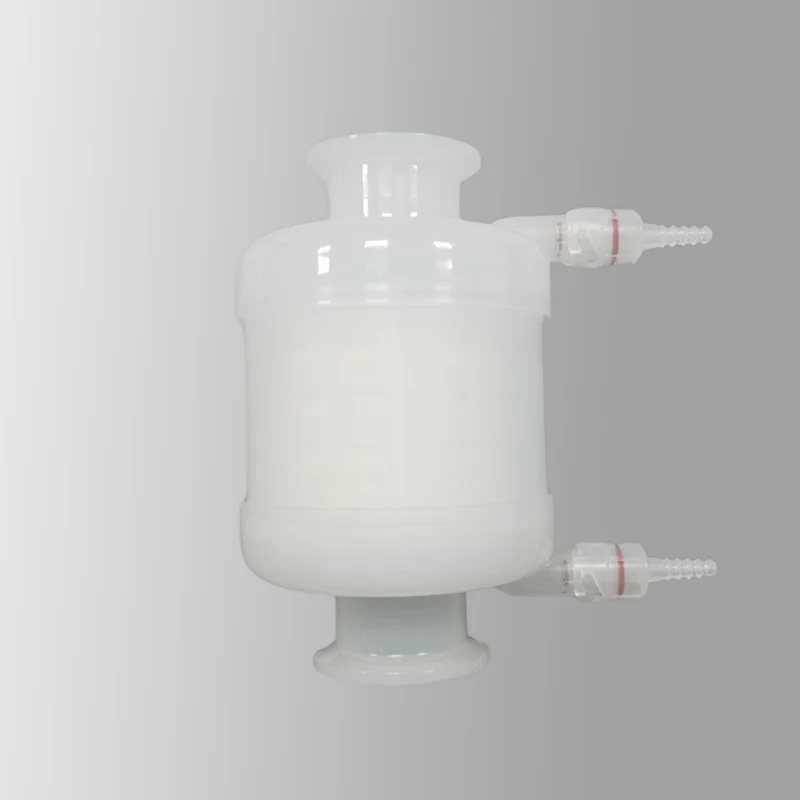

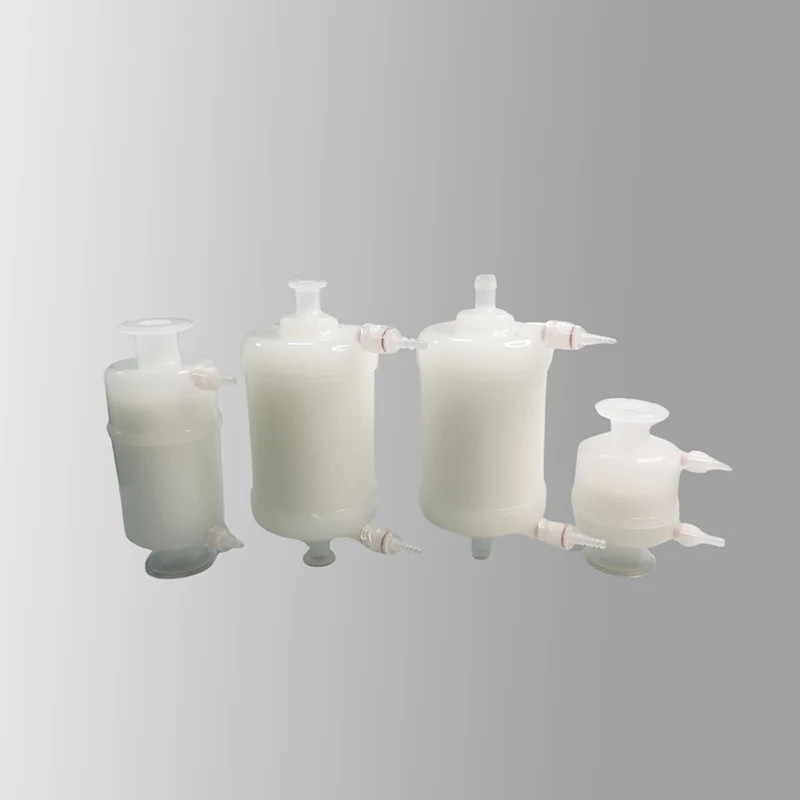

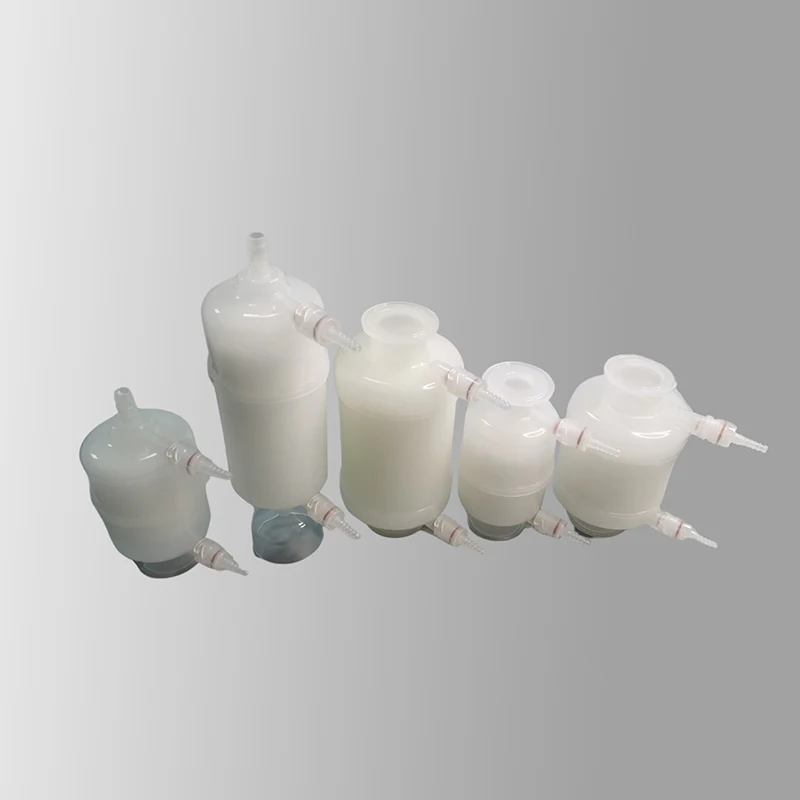

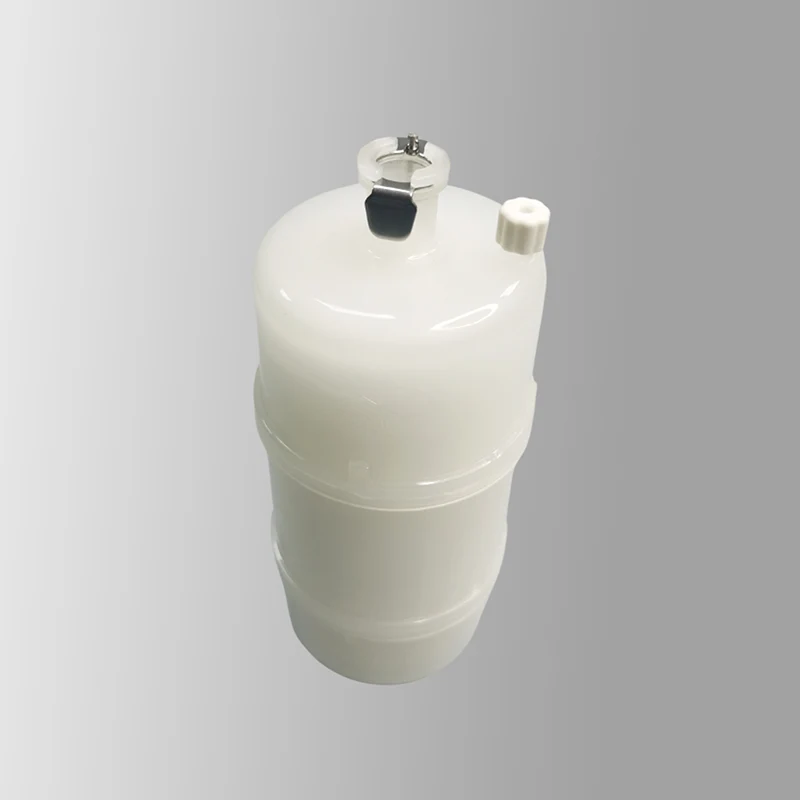

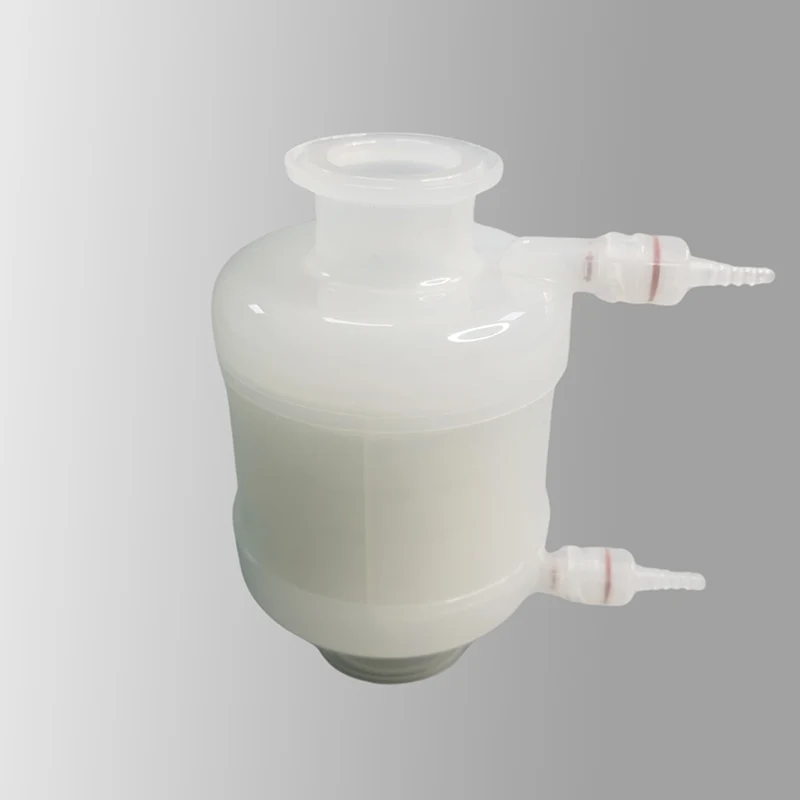

General Filtration PP Capsule Filters
The General Filtration PP Capsule Filters can offer professional OEM service. Polypropylene filter media capsule filter, made of multi-layer polypropylene filter media in a scientific combination, can intercept particles and foreign matter in layers, maximise the dirt-holding capacity of the cartridge, prolong the life of the cartridge, and minimise the initial differential pressure of the cartridge. We can provide different pore sizes 0.6µm, 1.0µm, 3.0µm, 5.0µm, 7.0µm, 10µm, 20µm, 30µm, 50µm and so on.
Send Inquiry
Product Description
Polypropylene filter media capsule filter, made of multi-layer polypropylene filter media in scientific combination, can intercept particles and foreign matter in layers, maximise the dirt-holding capacity of the cartridge, prolong the life of the cartridge, and minimise the initial differential pressure of the cartridge. We can provide different pore sizes 0.6µm, 1.0µm, 3.0µm, 5.0µm, 7.0µm, 10µm, 20µm, 30µm, 50µm and so on. Welcome to request a quotation for General Filtration PP Capsule Filters.
Benefits
Broad chemical compatibility
Higher dirt-holding capacity
higher filtration efficiency
Lower initial differential pressure
No fibre shedding
Material composition:
Filter membrane:polypropylene
support material:polypropylene
plastic parts:polypropylene
Centre rod :Polypropylene
Fusing technology :Hot melt
Typical Application
Bottled water, vinegar, aqueous solutions, beer, wine, beverages, edible oils, chemicals, inks and colours.
Case integrity:
Minimum burst pressure:123.5psi(8.5barg)
Sanitization/Sterilization
Hot water sterilization: 90℃, 30 minutes
High pressure steam sterilization: 121℃, 30 minutes
Food Safety Compliance
All filter materials comply with FDA regulations on food contact materials and EU Directive 10/2011
Order：
|
Area
|
Interface Type |
Aperture |
|
H=500cm^2 S=1000cm^2 L=2100cm^2 |
4N＝1／4＂NPT External Thread 6N＝3／8＂NPT External Thread 8N＝1／2＂NPT External Thread 6NF=3/8"NPT Internal Thread 4C=1/4" Swagelok 5C=5/16" Swagelok 6C=3/8" Swagelok 8C=1/4" Swagelok 4Q＝1／4＂CPC PLC-male 4QF=1/4"CPC PLC-female 6H=3/8" Plug 8H=1/2" Plug SH=1/4"-3/8" Stepped Plug 1T=1" Flange |
006=0.6um 010=1.0um 030=3.0um 050=5.0um 070=7.0um 100=10um 200=20um 300=30um 500=50um |
