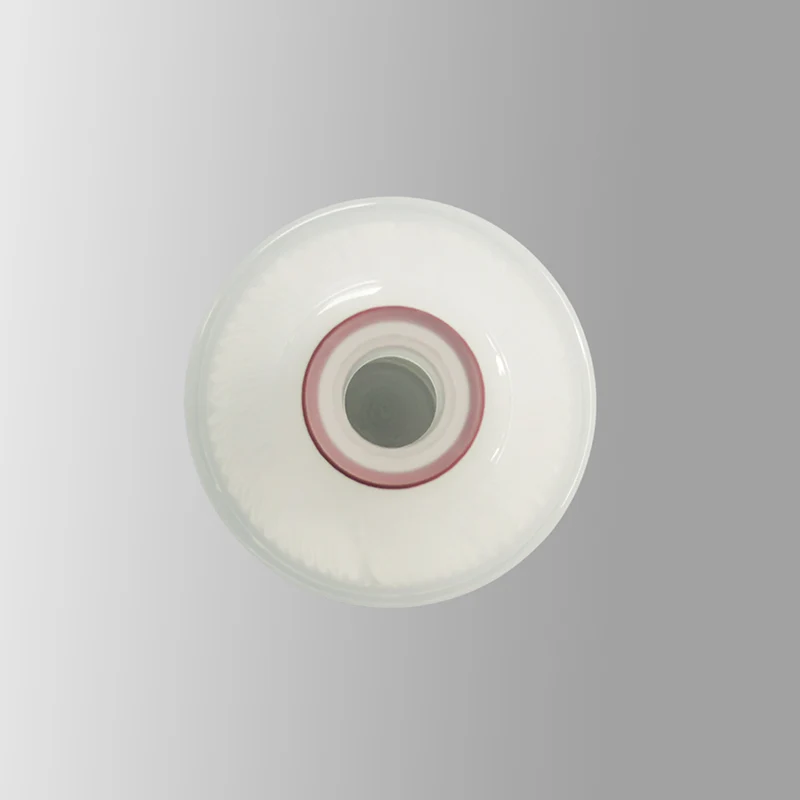

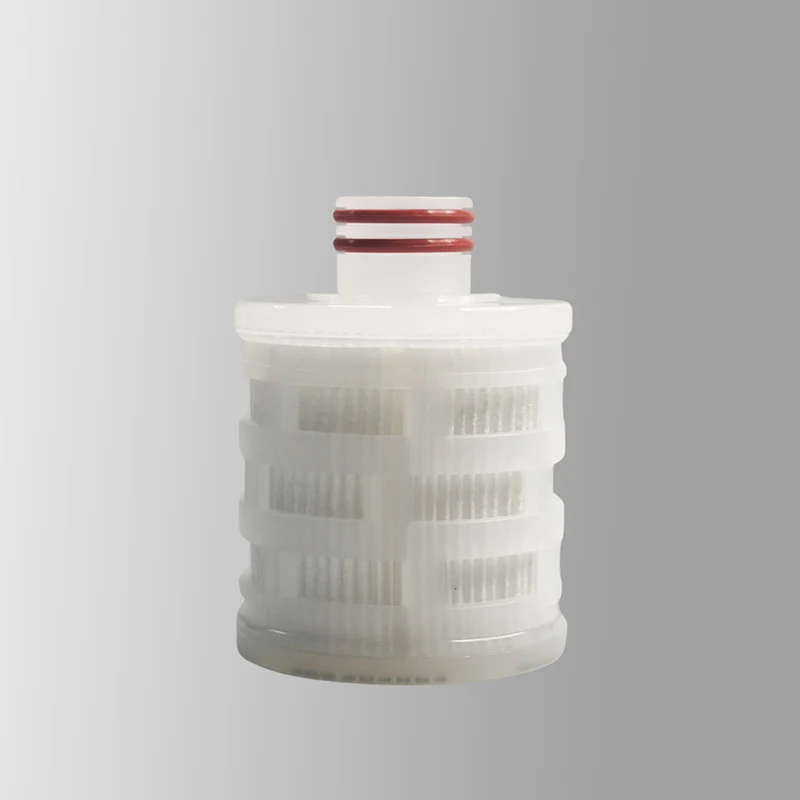

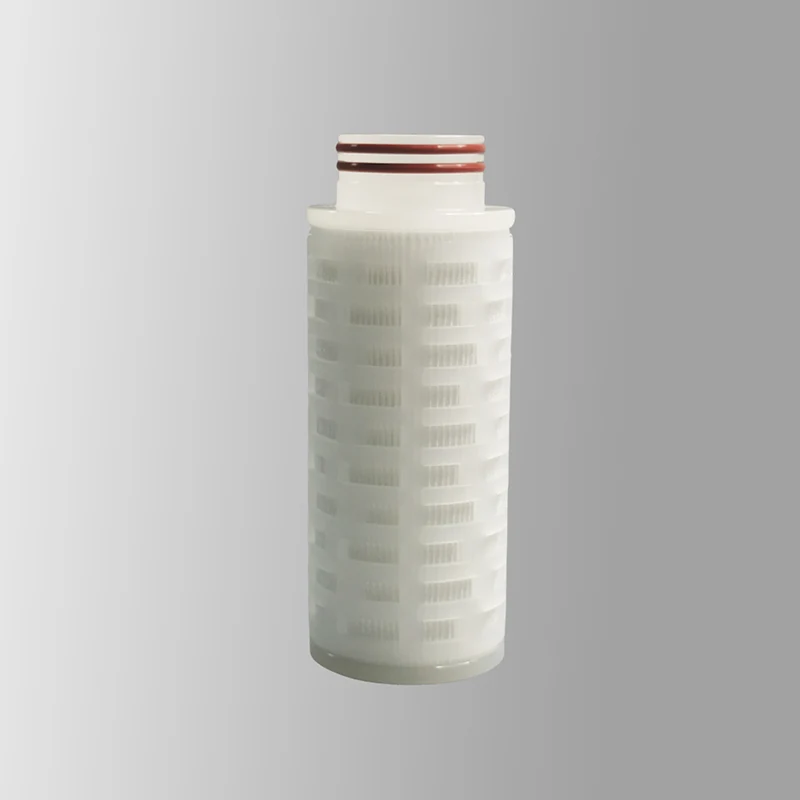

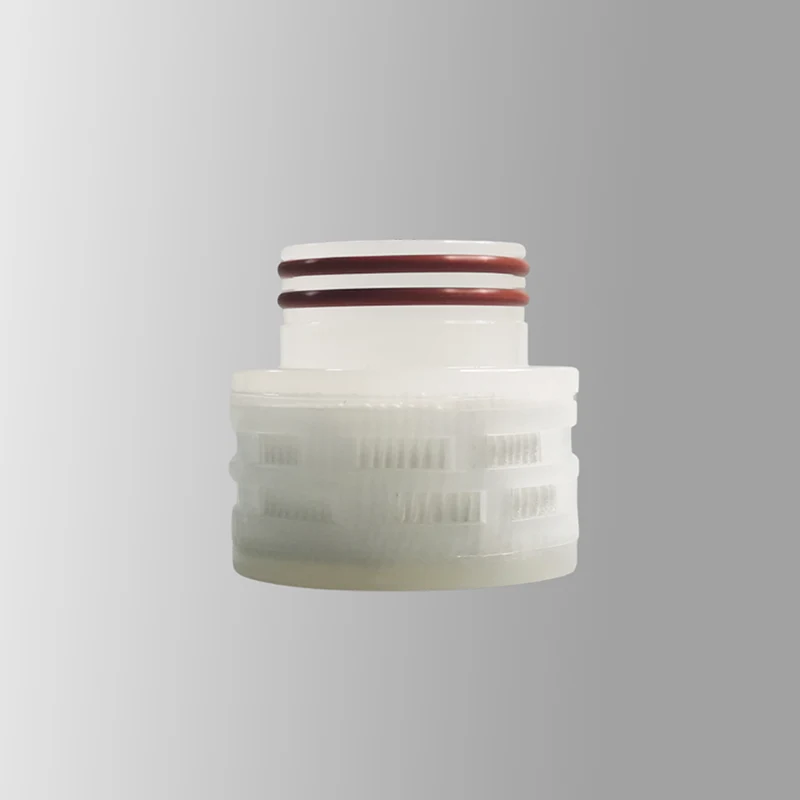

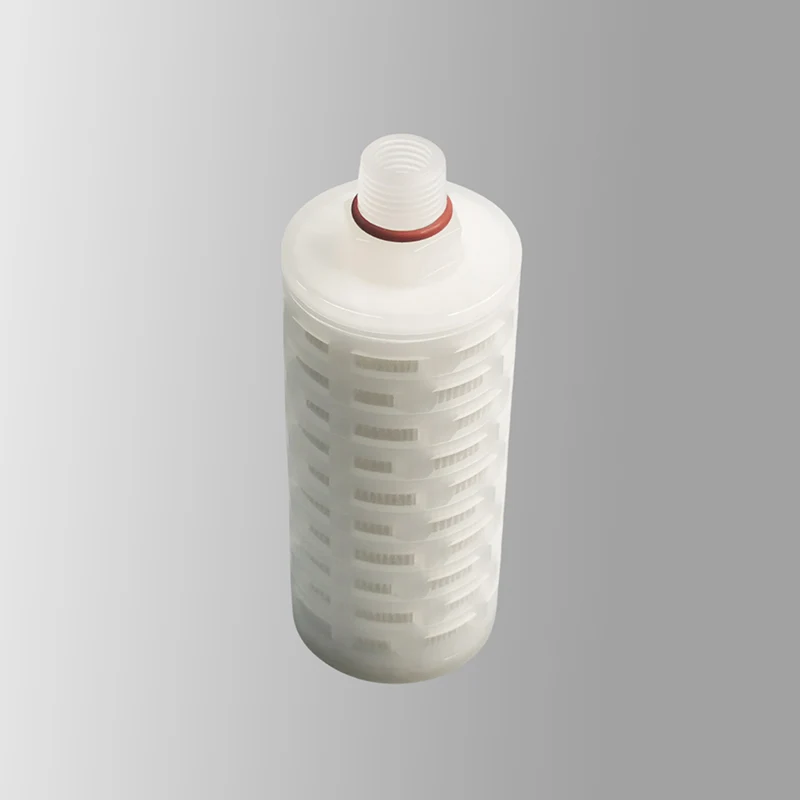

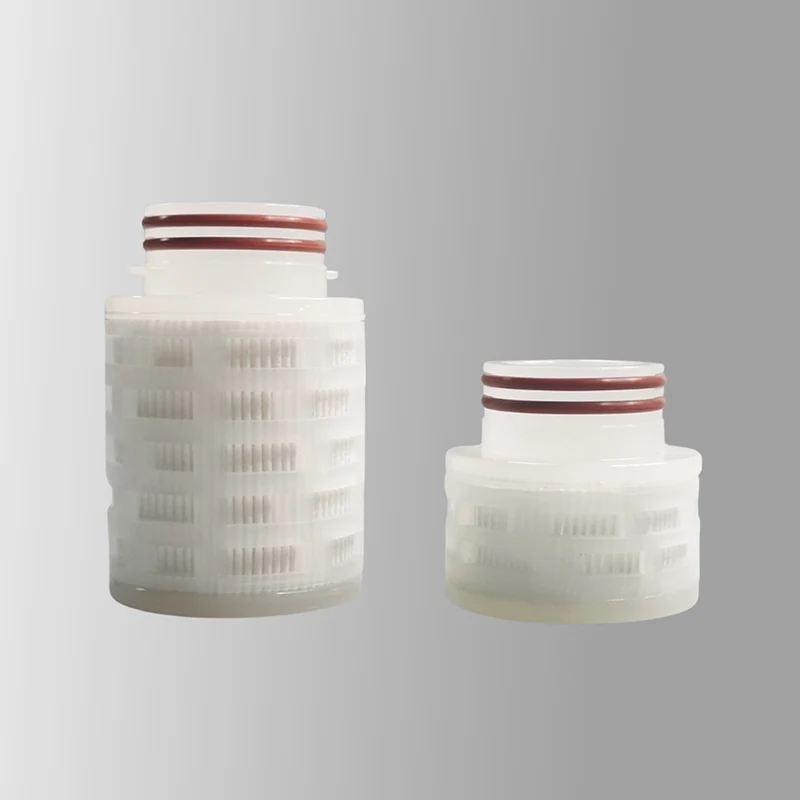

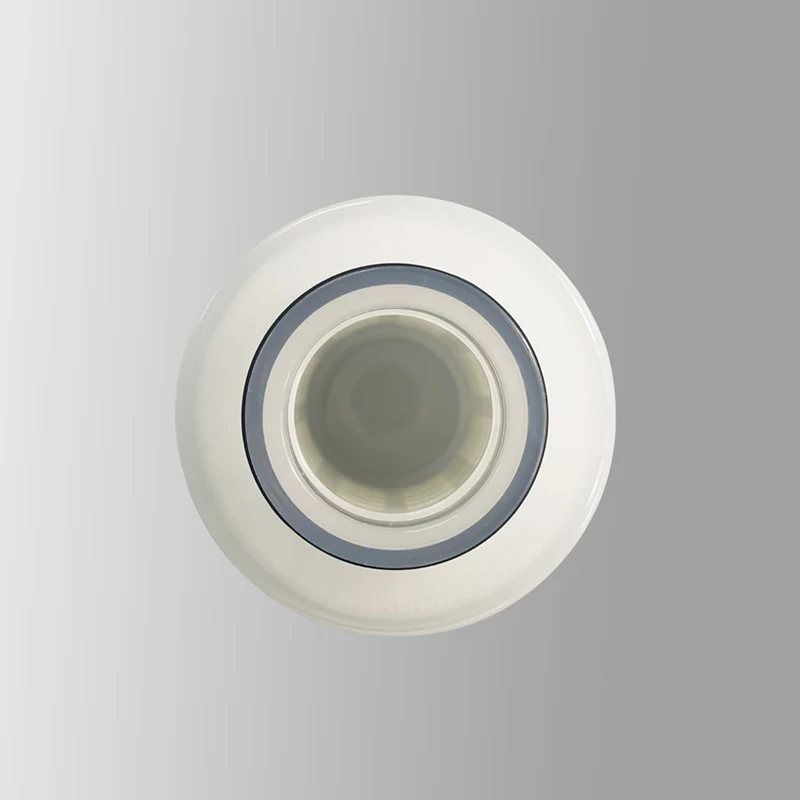

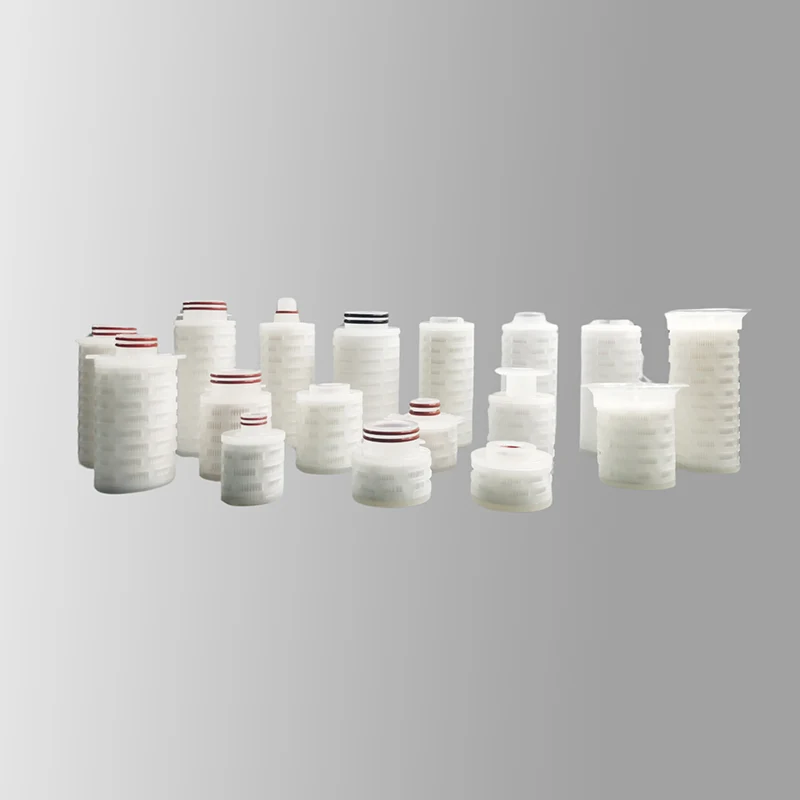

General Filtration PP Mini Filter Cartridge
The General Filtration PP Mini Filter Cartridge can offer professional OEM service. Mini folded polypropylene cartridge is made of multi-layer polypropylene filter material, which can intercept particles and foreign matter in layers, maximise the dirt-holding capacity of the cartridge, and prolong the life of the cartridge. And minimise the initial pressure of the cartridge. Filtration areas are available in 500cm^2, 1000cm^2, 1500cm^2, 2100cm^2. Pore sizes are available in 0.6µm, 1.0µm, 3.0µm, 5.0µm, 7.0µm, 10µm, 20µm, 30µm, 50µm and more.
Send Inquiry
Product Description
Memsep Filtration is a manufacturer with a decade of expertise in producing filter cartridges. As a supplier, we possess the capability to independently design products and production lines. For a substantial period, Memsep Filtration has been consistently supplying filter cartridges crafted from diverse materials, including but not limited to PP, PES, PTFE, and Nylon, to clients across the globe.
Capsule filters are constructed with polypropylene media depth to provide broad chemical compatibility, higher dirt-holding capacity, high flow rates at low pressure drop and low extraction rates. Filtration areas are available in 500cm^2, 1000cm^2, 1500cm^2, 2100cm^2. Pore sizes are available in 0.6µm, 1.0µm, 3.0µm, 5.0µm, 7.0µm, 10µm, 20µm, 30µm, 50µm and more. Welcome to purchase our durable General Filtration PP Mini Filter Cartridges.
Benefits
·Wide chemical compatiblity
·High dirt hold capacity
·High retention
·Thermal bonding
·Non-fiber releasing
Typical Applications
·Process Water
·Vinegar
·Aqueous solutions
·Beer, Wine and Spirits
·Juice,Soft Drinks,Edible Oils
·Bulk Chemicals
·Pharmaceutical intermediates
Maximum operating parameters
Differential Pressure
·Forward 80 psid (5.5 barg) at 20 ℃(68 °℉)
·Reverse 40 psid (3.1 barg) at 44 ℃(75 °F)
Operating Temperature 82 ℃(180 °℉) at 10 psid(6.9 barg)
Recommended Changeout Pressure:35psid(2.4barg)
Food Safety Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations,21CFR.
Materials used to produce filter media and hardware are safe for use in contact with foodstuffs in accordance with EU Directives 10/2011
Construction Materials
Filter Membrane:ePTFE Membrane
Media Support: Polypropylene
End Caps:Polypropylene
Inner Core:SUS 316L perforated core
Outer Cage:Polypropylene
Sealing Method: Thermal Bonding
O-rings: Buna, Viton(or FKM), EP, Silicone,
Encapsulated Silicone,
Encapsulated Viton (or FKM)
Toxicity
All components meet the specifications for biological safety per USP Class VI-121'C for plastics.
Sanitization/Sterilization
Filtered Hot Water 90 ℃(194 °℉), 30 minutes,multiple cycles, max 3 psid forward flow
Autoclave 121℃ (250 °F),30 min,multiple cycles
Order:
|
MICRON |
AREA |
ENDCAPS |
SEAL |
CONNECTION SUPPORT |
|
006=0.6um 010=1.0um 030=3.0um 050=5.0um 070=7.0um 100=10um 200=20um 300=30um 500=50um |
H=500cm^2 S=1000cm^2 D=1500cm^2 L=2100cm^2 |
A=116 w/o locking groove B=116 w/ locking groove C=116w/locking groove,ss ring D=118 double o-ring E=118 w/ short lugs (Pall replacement) F=118 w/longlugs(Sartorious replacement) G=1/2"NPT threaded H=123 double o-ring I= 126 double o-ring J= 1"TC K=80mm skirting L=1/2"TC M=1/2"BSPT N=123 double o-ring O=AS116 (Pall replacement) P=AS116 (Parker replacement) Q=1/2"BSPP |
B=Buna-N E=EPDM S=Silicone V=Viton |
S=With SS reinfocement |
