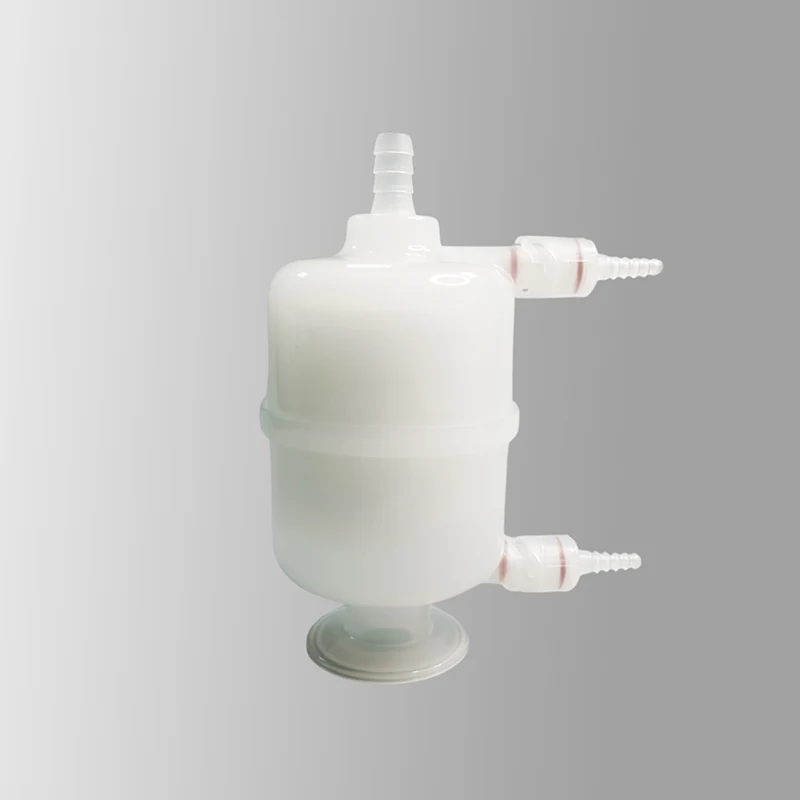

General Filtration PTFE Capsule Filters can offer highly accurate OEM service. PTFE capsule filters utilise absolute precision PTFE membranes, and each cartridge is 100% integrity tested in the manufacturing process to ensure effective bacteria removal and long service life. The hydrophobic nature of PTFE ensures high gas flux and bacterial removal under high humidity conditions. The inherent chemical inertness of PTFE membranes ensures broad chemical compatibility. Available in pore sizes of 0.1µm, 0.2µm, 0.45µm, 1.0µm, 3.0µm, 5.0µm.
Memsep Filtration is a manufacturer who has 10 years of experience in producing filter cartridges, and a supplier who has the ability to design products and production lines independently. Memsep Filtration has been supplying filter cartridges made of various materials including but not limited to PP, PES, PTFE, Nylon, etc. to clients from all over the world for a long-term period of time.
Each General Filtration PTFE Capsule Filters is 100 per cent integrity tested in the manufacturing process to ensure that it is effective in ensuring bacterial removal and longer service life. The hydrophobic character of PTFE ensures high gas flux and bacteriostatic capacity even under high humidity conditions. The inherent chemical inertness of the PTFE membrane ensures broad chemical compatibility. Available in pore sizes of 0.1µm, 0.2µm, 0.45µm, 1.0µm, 3.0µm, 5.0µm.
· 100% integrity test (bubble point)
· Extensive chemical compatibility
· No fiber shedding
·H:500cm^2
·S:1000cm^2
·L:2100cm^2
Precision | Bubble Point/IPA |
0.1um | 1.7barg |
0.2um | 1.1barg |
0.45um | 0.6barg |
1.0um | 0.4barg |
3.0um | 0.1barg |
5.0um | 0.07barg |
Compressed air, ultra-pure water respirator, aseptic packaging gas filtration, food fermentation gas sterilization, chemical solvent filtration
Minimum burst pressure:123.5psi(8.5barg)
All materials of the filter cartridge meet the requirements of the United States Pharmacopoeia VI plastic products.
· Filter membrane: polytetrafluoroethylene
· Supporting material: polypropylene
· Plastic parts: polypropylene
· Center rod: polypropylene
· Welding technology: hot melt
· Hot water disinfection: 90℃, 30 minutes
· High pressure steam sterilization: 121℃, 30 minutes
All materials of the filter cartridge comply with the requirements of the FDA Regulation on Food Contact Materials and the relevant EU regulation Directive 10/2011
Area |
Interface Type |
Aperture |
H=500cm^2 S=1000cm^2 L=2100cm^2
|
4N=1/4"NPT External Thread 6N=3/8"NPT External Thread 8N=1/2"NPT External Thread 6NF=3/8"NPT External Thread 4C=1/4" Swagelok 5C=5/16" Swagelok 6C=3/8"t Swagelok 8C=1/4" Swagelok 4Q=1/4"CPC PLC-male 4QF=1/4"CPC PLC-female 6H=3/8" Plug 8H=1/2" Plug SH=1/4"-3/8" Stepped Plug 1T=1" Flange |
001=0.1um 002=0.2um 004=0.45um 006=0.65um 010=1.0um 030=3.0um 050=5.0um
|
