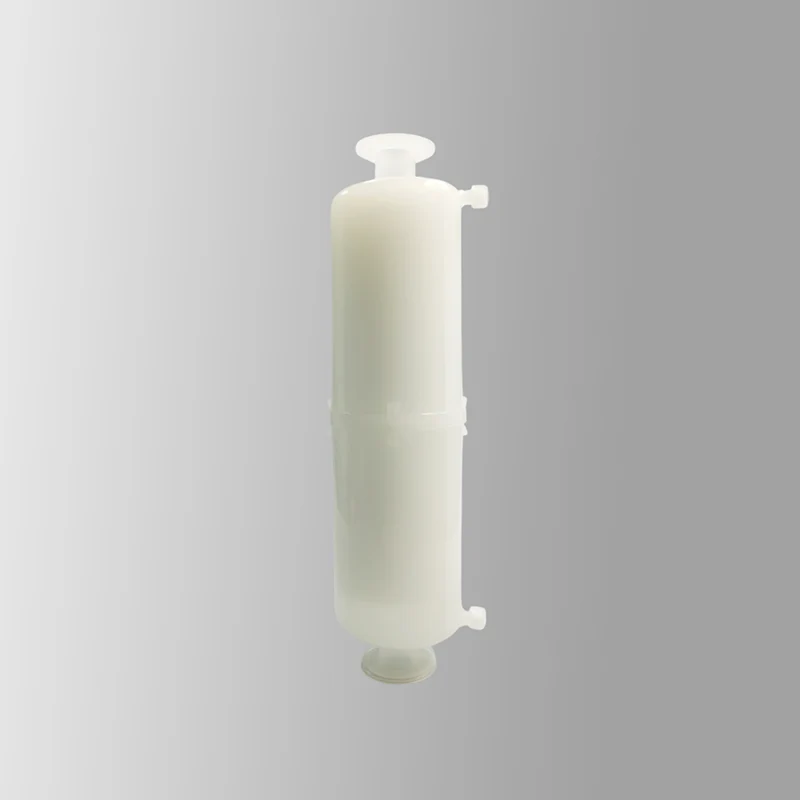

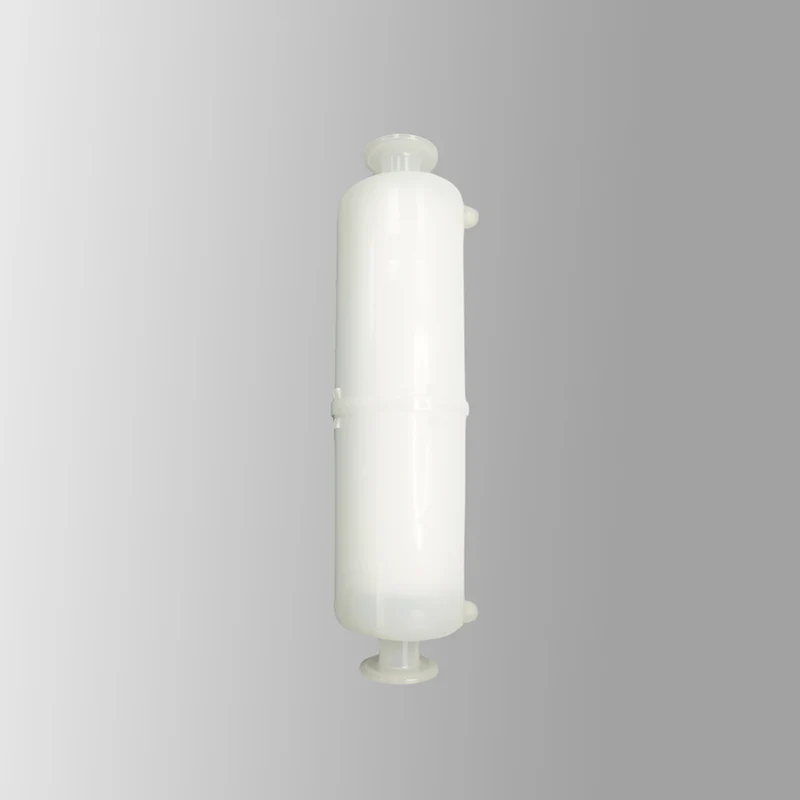

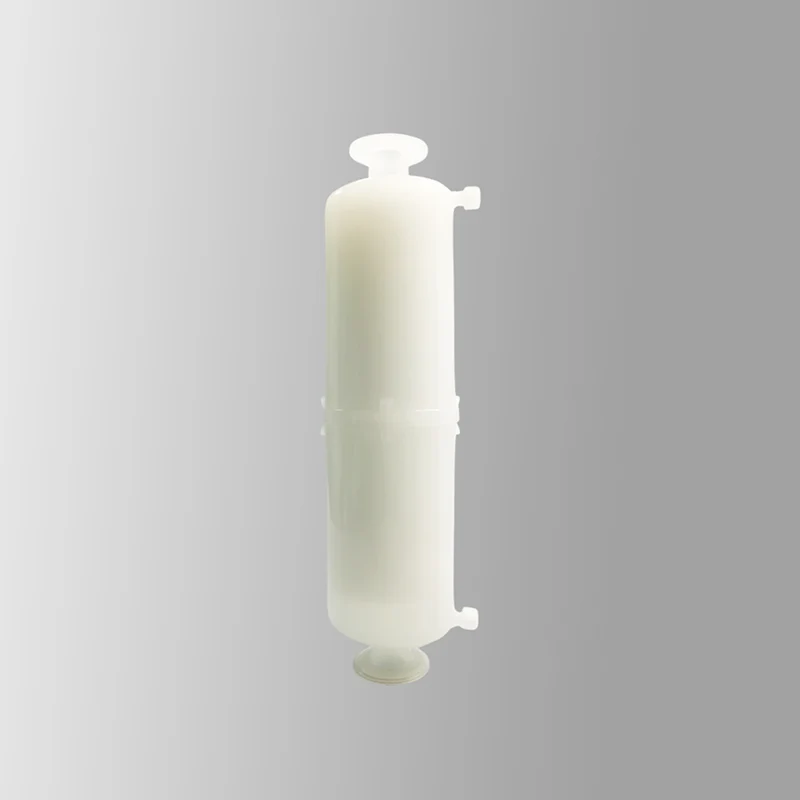

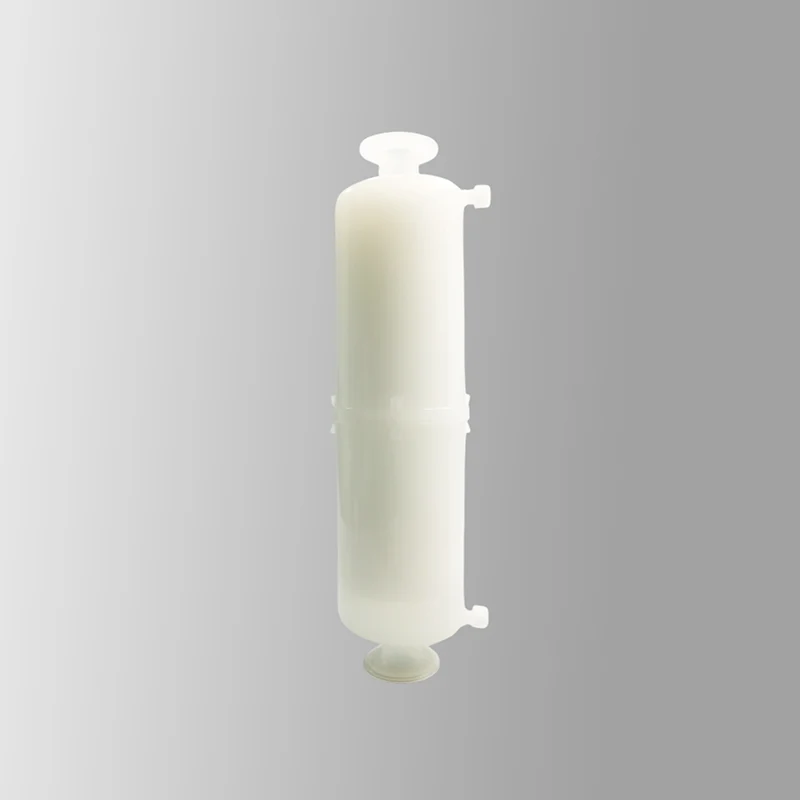

              Bio-Burden Reduction Grade MAX PES Capsule Filters
              • Bio-Burden Reduction Grade MAX PES Capsule FiltersBio-Burden Reduction Grade MAX PES Capsule Filters
              • Bio-Burden Reduction Grade MAX PES Capsule FiltersBio-Burden Reduction Grade MAX PES Capsule Filters
              • Bio-Burden Reduction Grade MAX PES Capsule FiltersBio-Burden Reduction Grade MAX PES Capsule Filters
              • Bio-Burden Reduction Grade MAX PES Capsule FiltersBio-Burden Reduction Grade MAX PES Capsule Filters

              Bio-Burden Reduction Grade MAX PES Capsule Filters

              Memsep Filtration And Solution Co., Ltd. provides professional OEM service. Bio-Burden Reduction Grade MAX PES Capsule Filters is one of our classic products, the large capsule filter is specially designed for the occasions that need to filter and remove bacteria and reduce the bio-burden of filtrate, the inlet and outlet adopt hygienic flange interface, which is easy to disassemble and install. Compared with the traditional capsule filter, the capsule filter has a higher filtration area, which will have a longer service life. It can reduce the trouble of frequent filter replacement. The filter membrane adopts imported asymmetric polyethersulfone membrane to ensure higher flux. Due to the low protein binding property of polyethersulfone membrane, the product can be widely used in food and beverage and biopharmaceutical.

              Send Inquiry

              Product Description

              Capsule filtersare a family of full-size capsule filters with a Staubli interface at the vent for online integrity testing. The filters consist of a single hydrophilic polyethersulfone membrane and all-polypropylene construction. It offers broad chemical compatibility, high flow rates at low pressure drops, and low extractables. Polyethersulfone is particularly well suited for filtration of products containing substances that are inherently absorbable by the membrane. The low protein binding properties of polyethersulfone make it ideal for filtration of valuable protein solutions such as vaccines and biologicals. You're welcome to purchase our OEM Bio-Burden Reduction Grade MAX PES Capsule Filters, which offers exceptional performance and quality.


              Typical Applications

              ·Cell Culture Media

              ·Large Volume Parenterals(LVP's)

              ·Pharmaceutical Bulk Chemical Solutions

              ·Diagnostics

              ·Blood and Serum Fractions

              ·Purified Water

              ·Beer,Wine and Spirits

              ·Juice & Soft Drinks

              ·Bottled Water


              Filter Area

              6000cm^2


              Toxicity

              All materials meet the specifications for biological safety per USP Class VI-121'C for plastics


              Construction of Materials

              Filter Media:Polyethersulfone

              Media Support:Polypropylene

              End Caps:Polypropylene

              Inner Core:Polypropylene

              Outer Cage:Polypropylene

              Sealing Method:Thermal Bonding


              Food Safety Compliance

              Materials of construction comply with FDA regulations fo

              food and beverage contact use as detailed

              in the US Code of Federal Regulations, 21CFR.

              Materials used to produce filter media and hardware

              are safe for use in contact with foodstuffs in accordance

              with EU Directives 10/2011


              Cartridge Integrity Test Specifications

              Water wetted membrane

              Pore size Minimum Bubble point
              0.2um 3.5barg@22℃
              0.45um 2.3barg@22℃
              0.65um 1.5barg@22℃


              Capsule Integrity

              Minimum burst pressure:123.5psi(8.5barg)


              Oddering:

              PORE SIZE

              LENGTH

              FITTINGS

              002=0.2um

              004=0.45um

              006=0.65

              10=318mm(over all length)

              1T=1"TC
