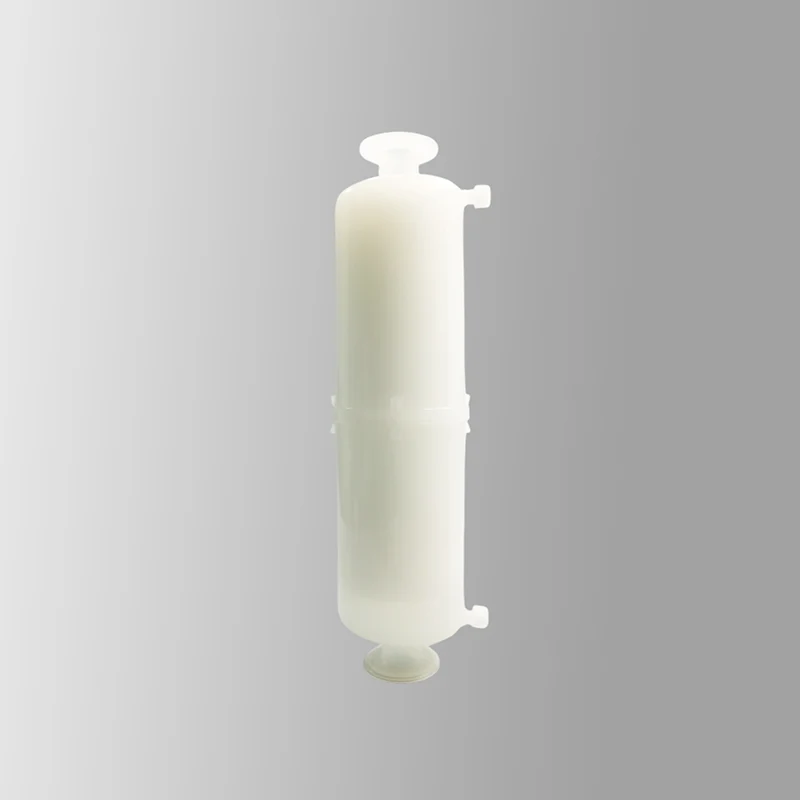

Sterilisation Filtration MAX PES Capsule Filters
Sterilisation Filtration MAX PES Capsule Filters can be customized as an OEM product. The large capsule filter is specially designed for the purpose of removing bacteria and reducing the bio-burden of the filtered liquid. The capacity of bacteria removal reaches LRV7. The inlet and outlet adopt sanitary flange interface, which is easy to disassemble and install. Compared with the traditional capsule filter, the capsule filter has a higher filtration area, which will have a longer service life. It can reduce the trouble of frequent filter replacement. The filter membrane adopts imported asymmetric polyethersulfone membrane to ensure higher flux. Due to the low protein binding property of polyethersulfone membrane, the product can be widely used in food and beverage and biopharmaceutical.
Send Inquiry
Product Description
Polyethersulfone Cartridges are 100% integrity tested,it isconstructed of double-layer hydrophilic asymmetric polyethersulfone membrane.It offers broad chemical compatibility, high flowrates at lowpressure drops,and low extractables.Polyethersulfone is particularly suited for the filtration of products that contain substances that adsorb to the media,The lower binding characteristics of polyethersulfone make it a good choice for filtration of valuable protein solutions such as vaccines and biologicals. If you want to know more about Sterilisation Filtration MAX PES Capsule Filters, please contact us.
Typical Applications
·Cell Culture Media
·Large Volume Parenterals (LVP's)
·Pharmaceutical Bulk Chemical Solutions
·Diagnostics
·Blood and Serum Fractions
·Purified Water
·Beer,Wine and Spirits
·Juice & Soft Drinks
·Bottled Water
Filter Area
6000cm*2
Toxicity
All materials meet the specifications for biological safety per USP Class VI-121'C for plastics.
Construction of Materials
Filter Media:Polyethersulfone
Media Support:Polypropylene
End Caps:Polypropylene
Inner Core:Palypropylene
Outer Cage:Polypropylene
Sealing Method: Thermal Banding
Food Safety Compliance
Materials of construction comply with FDA regulatians for food and beverage contact use as detailed in the US Code of Federal Regulations,21CFR.
Materials used to produce filter media and hardware are safe for use in contact with foodstuff in accordance with EU Directives 10/2011
Cartridge Integrity Test Specifications
Water wetted membrane
| Pore size | Minimum Bubble point |
| 0.1um | 2.2barg(water/IPA) |
| 0.2um | 3.8barg(water) |
| 0.45um | 2.7barg(water) |
Capsule Integrity
Minimum burst pressure:123.5psi(8.5barg)
Ordering Information
|
PORE SIZE |
LENGTH |
FITTINGS |
|
00x2=0.04/0.2um 00x4=0.04/0.45um 0024=0.2/0.45um 0026=0.2/0.65 0046=0.45/0.65um 00468=0.45/0.8um |
10=318mm(overall length) |
1T=1"TC |
