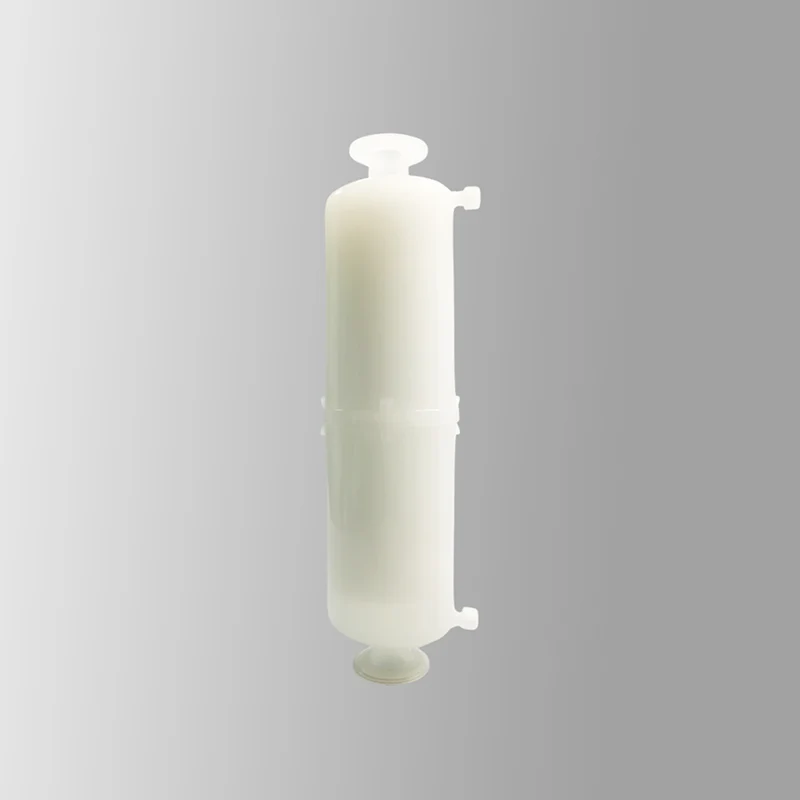

General Filtration MAX PES Capsule Filters

General Filtration MAX PES Capsule Filters can be customized as an OEM product. The large capsule filter is specially designed for applications that require sterilization to reduce the bio-burden of the filtrate. It has a bacterial removal capacity of LRV7. Compared with traditional capsule filters, capsule filters have a higher filtration area, which results in a longer service life. This reduces the need for frequent filter changes. There is a standard 10-inch cartridge inside, and the membrane is made of imported asymmetric polyethersulfone membrane to ensure higher flux. Due to the low protein binding properties of the polyethersulfone membrane, the product can be widely used in food and beverage and biopharmaceuticals. We offer sizes with a minimum pore size of 0.01 µm and a minimum bubble point of 70 psig (4.8 bar).

Send Inquiry

Product Description

Memsep Filtration is a manufacturer with 10 years of experience in producing filter cartridges and a supplier that possesses the capability to independently design products and production lines. For an extended period, Memsep Filtration has been providing clients worldwide with filter cartridges crafted from a variety of materials, including but not limited to PP, PES, PTFE, and Nylon.

PES capsule filters are a family of full-size capsule filters for in-line integrity testing. The filter consists of a single hydrophilic polyethersulfone membrane in an all-polypropylene construction. It offers broad chemical compatibility, high flow rates at low pressure drops, and low extractables. Polyethersulfone is particularly well suited for filtration of products containing substances that can be absorbed by the membrane itself. The low protein binding properties of polyethersulfone make it ideal for filtration of valuable protein solutions such as vaccines and biologicals. We offer sizes with a minimum pore size of 0.01 µm and a minimum bubble point of 70 psig (4.8 bar). If you want to know more about General Filtration MAX PES Capsule Filters, please contact us.

Typical Applications

·Cell Culture Media

·Large Volume Parenterals(LVP's)

·Pharmaceutical Bulk Chemical Solutions

·Diagnostics

·Blood and Serum Fractions

·Purified Water

·Beer,Wine and Spirits

·Juice& Soft Drinks

·Bottled Water

Filter Area

6000cm^2

Construction of Materials

Filter Media:Polyethersulfone

Media Support:Polypropylene

End Caps: Polypropylene

Inner Core:Polypropylene

Outer Cage:Polypropylene

Sealing Method:Thermal Bonding

Toxicity

All materials meet the specifications for biological safety per USP Class VI-121C for plastics.

Food Safety Compliance

Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations,21CFR.

Materials used to produce filter media and hardware are safe for use in contact with foodstuffs in accordance with EU Directives 10/2011

Capsule Integrity

Minimum burst pressure: 123.5psi(8.5barg)

Cartridge Integrity Test Specifications

Water wetted membrane

Pore size	Minimum Bubble point
0.1um	70 psig(4.8 bar)
0.2um	45 psig(3.1 bar)
0.45um	24 psig(1.7 bar)
0.65um	19 psig(1.3 bar)
0.8um	17 psig(1.2 bar)
1.2um	11.6psig(0.8 bar)
