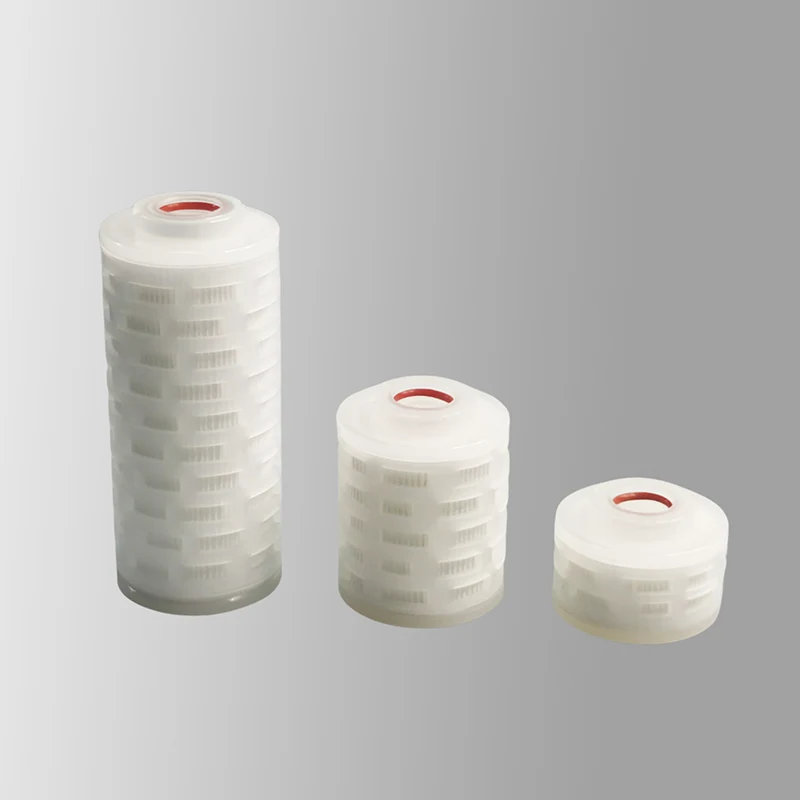

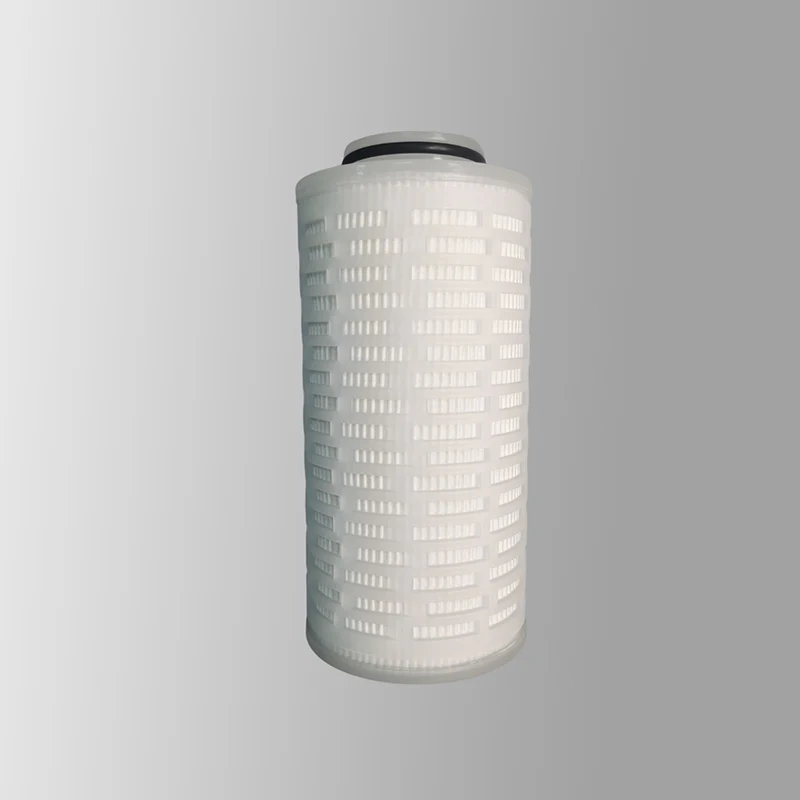

Bio-Burden Reduction Grade PTFE Filter Cartridge
You're welcome to purchase our OEM Bio-Burden Reduction Grade PTFE Filter Cartridge, which offers exceptional performance and quality. PTFE cartridges are made with absolute precision PTFE membranes and each cartridge is 100% integrity tested in the manufacturing process. This ensures effective bacterial removal and long service life. The natural hydrophobicity of PTFE ensures high gas flux and bacterial removal even under high humidity conditions. The inherent chemical inertness of PTFE membranes ensures broad chemical compatibility. Pore sizes are available in 0.1µm and 0.2µm.
Send Inquiry
Product Description
The PTFE cartridge is a high retention hydrophobic PTFE membrane filter with polypropylene components designed for critical liquid and gas sterilisation applications. The PTFE membrane offers excellent chemical compatibility and high flow rates per unit area for in-situ steam and hot gas applications. All filter elements are 100% integrity tested to ensure filtration performance every time they leave the factory. PTFE filter cartridges are ideally suited for critical applications requiring excellent flow rates and particle or microbial removal efficiencies. Pore sizes are available in 0.1µm and 0.2µm. Welcome to purchase our durable Bio-Burden Reduction Grade PTFE Filter Cartridges.
Typical Applications
·Fementer
·Formulation Tank air feed
·RO and WFI storage tank
·Fermentation air feed
·Container purge air
·Aspetic packaging air
Benefits
·100% integrity tested
·FDA food contact compliant
·Thermal bonding
·Non-fiber releasing
Length:
5 to 40 inches (12.7 to 101.6 cm) nominal
Outside Diameter:2.70 inches (7.0 cm) nominal
Integrity
| Pore Size | 0.2um |
| Bubble Point | ≥1.4 barg(IPA/Water) |
| Water Intrusion |
≤0.37ml/min @2500mbar/10",22℃ |
Maximum operating parameters
Differential Pressure
·Forward 80 psid (5.5 barg) at 20℃(68 °F)
·Reverse 40 psid (3.1 barg) at 44 ℃(75°℉)
Operating Temperature 82℃(180 °℉) at 10 psid(6.9 barg)
Recommended Changeout Pressure:35psid(2.4barg)
Sanitization/Sterilization
The filters can also sanitized by hot water or common chemicals that are compatible with filter components.
In-line Steam 135 ℃(275 °℉), 30 min, 200 cycles
Toxicity
All components meet the specifications for biological safety per USP Class VI-121'C for plastics.
Construction Materials
Filter Membrane:ePTFE Membrane
Media Support:Polypropylene
End Caps: Polypropylene with embedded 316 ring
Inner Core: SUS 316L perforated core
Outer Cage: Polypropylene
Sealing Method: Thermal Bonding
O-rings: Buna, Viton(or FKM), EP, Silicone,Encapsulated Silicone,Encapsulated Viton (or FKM)
Food Safety Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21CFR.
Materials used to produce filter media and hardware are safe for use in contact with foodstuffs in accordance with EU Directives 10/2011
Order:
|
PORE SIZE |
LENGTH |
ENDCAPS |
INNER CORE |
SEAL |
CONNECTION SUPPORT |
|
001=0.1um 002=0.2um |
05=5" 10=10" 20=20" 30=30" 40=40" |
7=226/fin 6=226/flat 0=222/flat 5=222/fin F=DOE 2=224/fin 3=224/flat 4=222/fin(3luggs) 8=222/flat(3luggs) x=213Inter o-ring |
S=Stainless steel P=Polypropylene |
B=Buna-N E=EPDM S=Silicone V=Viton TV=Fep encapsulated viton TS=Fep encapsulated silicone |
S= With SS reinfocement |
