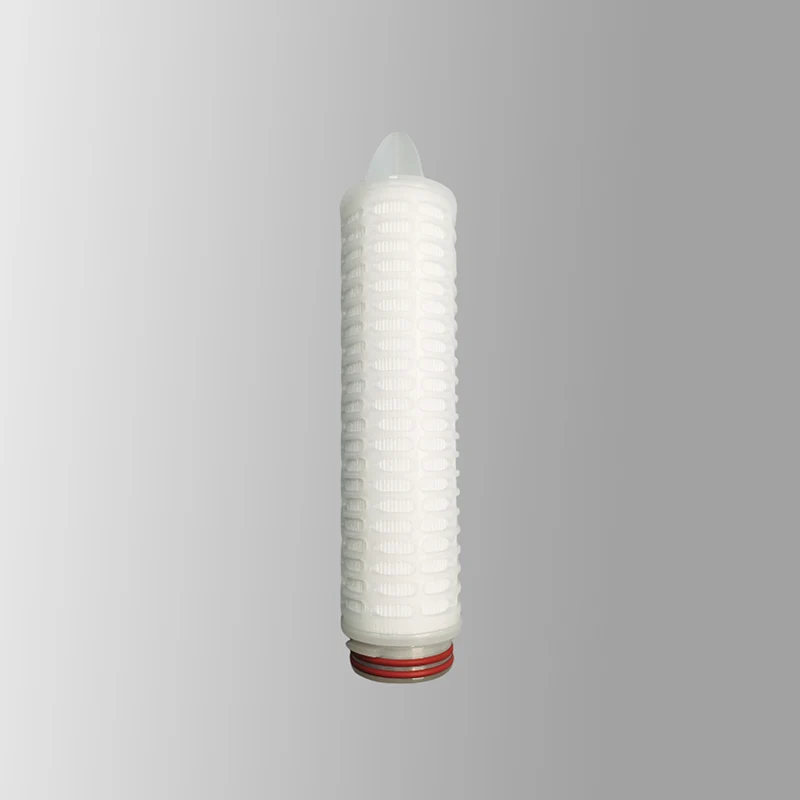

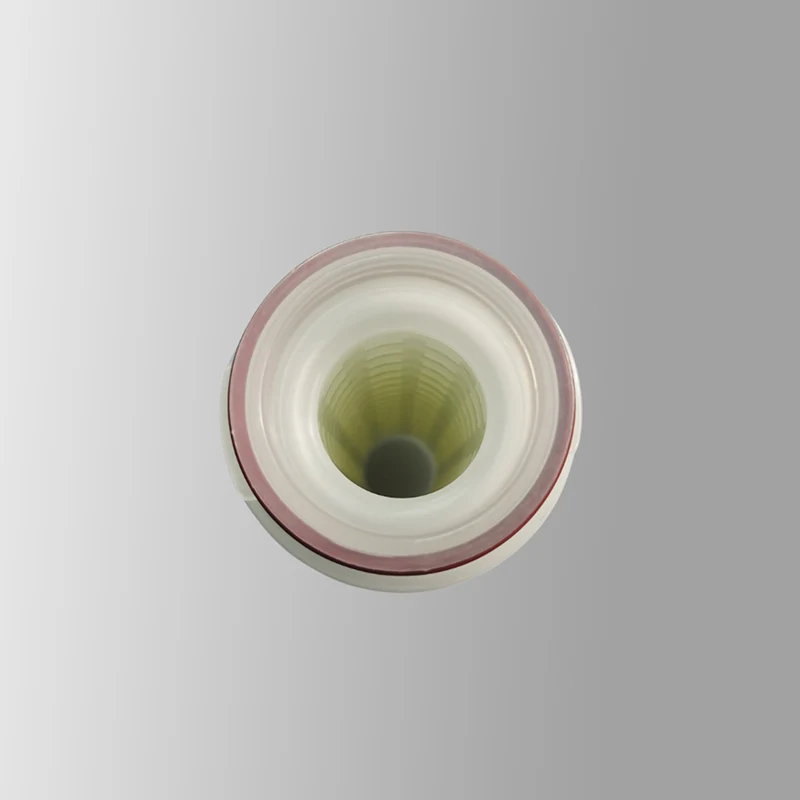

General Filtration Hydrophilic PTFE Filter Cartridge
The General Filtration Hydrophilic PTFE Filter Cartridge can offer professional OEM service. Folded Cartridge Filters with Hydrophilic PTFE Membranes Folded cartridge filters are 100% integrity tested and made from a single layer of hydrophilic PTFE membrane. It offers broad chemical compatibility, a larger filtration area, and higher flow rates at low pressure drop and low extraction rates.
Send Inquiry
Product Description
Memsep Filtration is a manufacturer who has 10 years of experience in producing filter cartridges, and a supplier who has the ability to design products and production lines independently. Memsep Filtration has been supplying filter cartridges made of various materials including but not limited to PP, PES, PTFE, Nylon, etc. to clients from all over the world for a long-term period of time. Welcome to request a quotation for General Filtration Hydrophilic PTFE Filter Cartridges.
Pleated Cartridge Filters with hydrophilic PTFE membrane are 100% integrity tested, it isconstructed of single-layer hydrophilic PTFE membrane. lt offers broad chemical compatibility.higher filter area with high flowrates at low pressure drop and low extractables.
Typical Applications
·Process Water
·Vinegar
·Aqueous solutions
·Beer,Wine and Spirits
·Juice,Soft Drinks,Edible Oils
·Bulk Chemicals
·Pharmaceutical intermediates
Length:
5 to 40 inches (12.7 to 101.6 cm) nominal
Outside Diameter:2.70 inches (7.0 cm) nominal
Filter Integrity:
| Pore size | Minimum Bubble point |
| 0.1um | 65.3 psig (4.5 bar) |
| 0.2um | 46.4 psig(3.2 bar) |
| 0.45um | 31.9 psig(2.2 bar) |
| 1.Oum | 8.7 psig(0.6 bar) |
Maximum operating parameters
Differential Pressure
·Forward 50 psid (3.4 bard) at 20℃(68°F)
·Reverse 40 psid (2.7 bard) at 20 ℃(68 °℉)
Operating Temperature 82 ℃(180 °℉) at 10 psid(0.69 barg) in water
Recommended Changeout Pressure:35psid(2.4barg)
Toxicity：
All plastic parts meet the specifications for biological safety per USP Class VI-121'C for plastics.
Construction Materials
Filter Membrane:Hydrophilic PTFE Membrane
Media Support:Polypropylene
End Caps:Polypropylene
Inner Core:Polypropylene
Outer Cage:Polypropylene
Sealing Method: Thermal Bonding
O-rings: Buna, Viton(or FKM), EP, Silicone,
Encapsulated Silicone,
Encapsulated Viton (or FKM)
Food Safety Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations,21CFR.
Materials used to produce filter media and hardware are safe for use in contact with foodstuffs in accordance with EU Directives 10/2011
Sanitization/Sterilization
Filtered Hot water90℃(194 "F),30 minutes, multiple
cycles,max 3 psid forward flow
Autoclave 121℃ (250 °℉), 30 min, multiple cycles
In-line Steam 135℃(275°F), 30 min,multiple cycles
Order:
|
PORE SIZE |
LENGTH |
ENDCAPS |
SEAL |
CONNECTION SUPPORT |
|
001=0.1um 002=0.2um 004=0.45um 006=0.65um 010=1.0um 030=3.0um |
05=5" 10=10" 20=20" 30=30" 40=40" |
7=226/fin 6=226/flat 0=222/flat 5=222/fin F=DOE 2=224/fin 3=224/flat 4=222/fin(3luggs) 8=222/flat(3luggs) x=213 Inter o-ring |
B=Buna-N E=EPDM S=Silicone V=Viton TV=Fep encapsulated viton TS=Fep encapsulated silicone |
S= With SS reinfocement |
