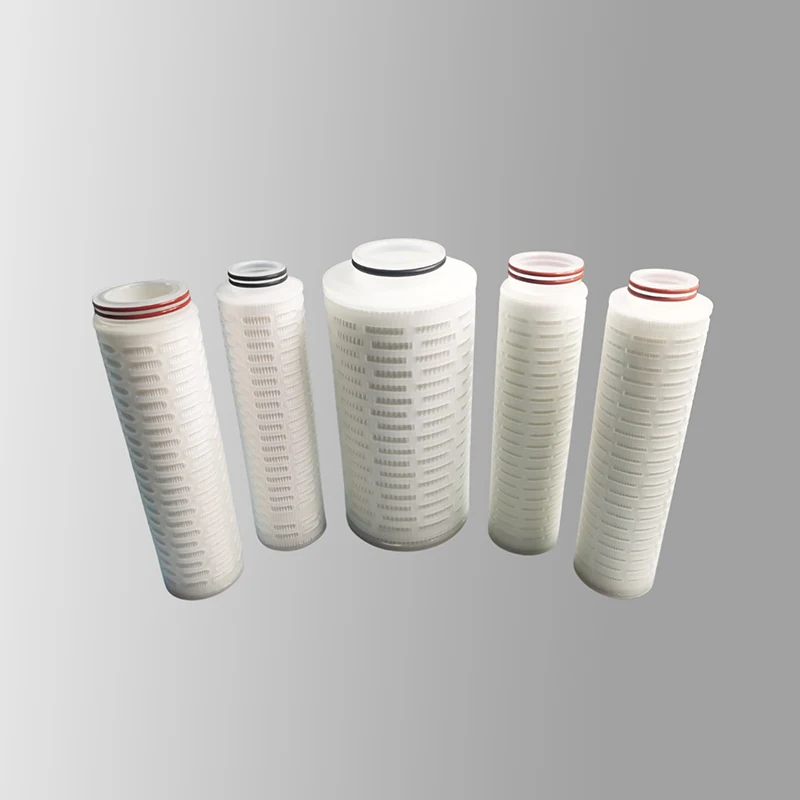

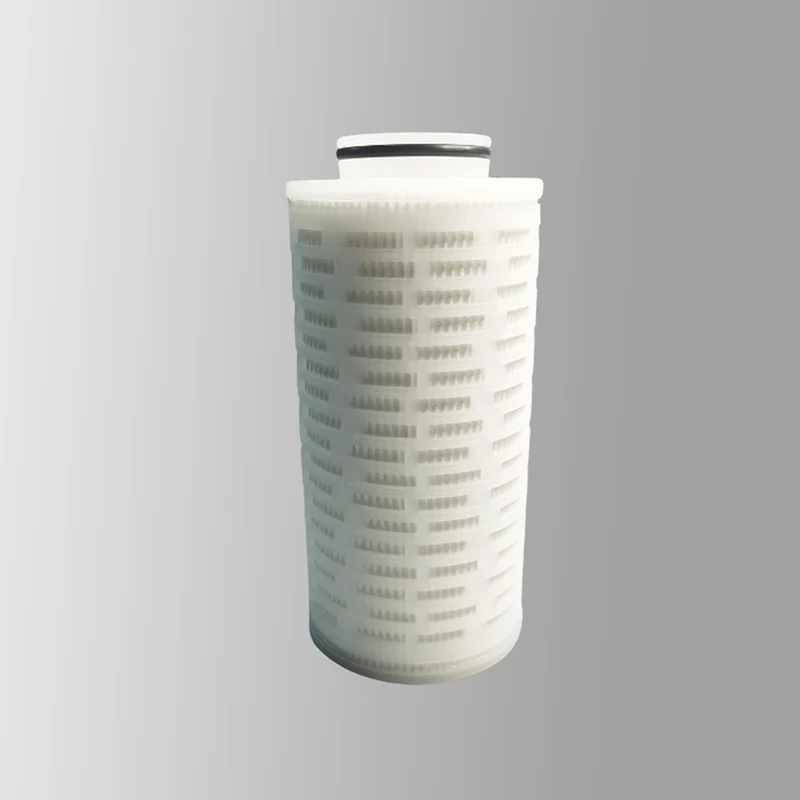

General Filtration PTFE Filter Cartridge
Welcome to order our high-quality OEM General Filtration PTFE Filter Cartridges. PTFE cartridges are made with absolute precision PTFE membranes and each cartridge is 100% integrity tested in the manufacturing process to ensure that it is effective in ensuring sterilisation performance and a longer service life. The hydrophobic nature of PTFE ensures high gas flux and particle filtration under high humidity conditions. The inherent chemical inertness of the PTFE membrane ensures broad chemical compatibility.
Send Inquiry
Product Description
General Filtration PTFE Filter Cartridges are 100% integrity tested,it is constructed of single-layer expanded polytetrofluoroethylene membrane. lt offers broad chemical compatibility, higher filter area with high flowrates at low pressure drops, and lowextractables.
Product Features:
·100% integrity tested
·FDA food contact compliant
·Thermal bonding
·Non-fiber releasing
Typical Applications
·Compressed air
·Pressurized gases
·Tank ventilation
·Chemicals
·Solvents
Toxicity
All components meet the specifications for biological safety per USP Class VI-121'C for plastics.
Length:
5 to 40 inches (12.7 to 101.6 cm) nominal
Outside Diameter:2.70 inches (7.0 cm) nominal
Filter Integrity:
| Pore size | Bubble Point/IPA |
| 0.1um | 1.7barg |
| 0.2um | 1.1barg |
| 0.45um | 0.6barg |
| 1.0um | 0.4barg |
| 3.0um | 0.1barg |
| 5.0um | 0.07barg |
Maximum operating parameters
Differential Pressure
·Forward 50 psid(3.4 barg) at 20℃(68 °F)
·Reverse 40 psid(2.7 barg) at 20℃(68 °℉)
Operating Temperature 82°C (180 °℉) at 10 psid(0.69 bard)
Recommended Changeout Pressure:35psid(2.4barg)
Construction Materials
Filter Membrane: PTFE Membrane
Media Support:Polypropylene
End Caps:Polypropylene
Inner Core:Polypropylene
Outer Cage: Polypropylene
Sealing Method:Thermal Bonding
O-rings: Buna, Viton(or FKM), EP, Silicone,
Encapsulated Silicone,
Encapsulated Viton (or FKM)
Food Safety Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21CFR.
Materials used to produce filter media and hardware are safe for use in contact with foodstuffs in accordance with EU Directives 10/2011
Order:
|
PORE SIZE |
LENGTH |
ENDCAPS |
SEAL |
CONNECTION SUPPORT |
|
001=0.1um 002=0.2um 004=0.45um 006=0.65um 010=1.0um 030=3.0um 050=5.0um |
05=5" 10=10" 20=20" 30=30" 40=40" |
7=226/fin 6=226/flat 0=222/flat 5=222/fin F=DOE 2=224/fin 3=224/flat 4=222/fin(3luggs) 8=222/flat(3luggs) x=213 Inter o-ring |
B=Buna-N E=EPDM S=Silicone V=Viton TV=Fep encapsulated viton TS=Fep encapsulated silicone |
S= With SS reinfocement |
