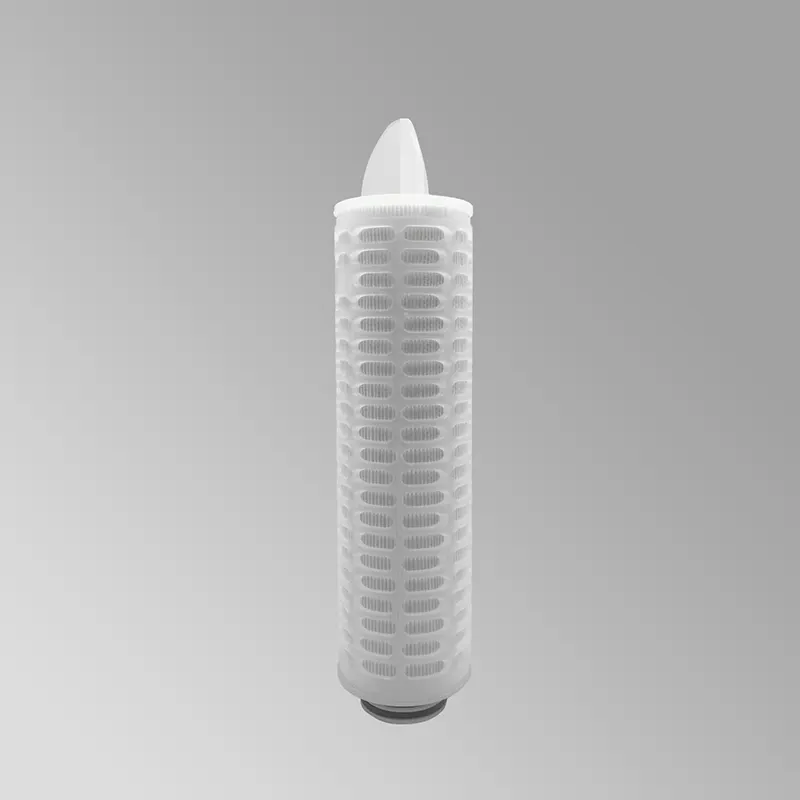

Sterilisation Filtration PES Filter Cartridge
Sterilisation Filtration PES Filter Cartridges use double-layer asymmetric polyethersulfone membranes Each cartridge is 100% integrity tested in the manufacturing process, and the double-layer membranes provide effective sterilisation performance and longer service life. Due to the low protein binding properties of polyethersulfone membranes, the products can be used in a wide range of food and beverage and pharmaceutical. The sterilisation filter cartridges are available in 0.2/0.1µm, 0.45/0.1µm, 0.45/0.2µm, 0.65/0.2µm, 0.65/0.45µm, 0.8/0.65µm inner and outer diameter sizes.
Send Inquiry
Product Description
The sterilizing grade polyethersulfone membrane cartridges are designed to produce product sterility.The filters are constructed of double layer hydrophilic polyethersulfone membrane in all polypropylene construction .It offers broad chemical compatibility, high flow rate at low pressure drop, and low extractables. The polyethersulfone is particular suitable for the filtration of products that contains substances absorb to the membrane itself. The low protein binding characteristics of polyethersulfone makes it a good choice for the filtration of valuable protein solutions such as vaccines and biologicals. If you want to know more about Sterilisation Filtration PES Filter Cartridge, please contact us.
Typical Application
·Cell Culture Media
·Large Volume Parenterals (LVP's)
·Pharmaceutical Bulk Chemical Solutions
·Diagnostics
·Blood and Serum Fractions
·Purified Water
·Beer, Wine and Spirits
·Juice&Soft Drinks
·Bottled Water
Length:
5 to 40 inches(12.7 to 101.6 cm)nominal
Outside Diameter:2.70 inches (7.0 cm) nominal
Integrity
| Pore size | Minimum Bubble point |
| 0.2/0.2um | 55.1PS1/3.8barg(water) |
| 0.45/0.2um | 55.1PSI/3.8barg(water) |
| 0.8/0.45um | 39.2/2.7barg(water) |
Maximum Operating Parameters
Differential Pressure
·Forward 50 psid (3.4 bard) at 20℃(68F)
·Reverse 40 psid (2.7 bard)at 20 ℃(68℉)
Operating Temperature 82 ℃C(180 "℉) at 10 psid(0.69 barg)in water
Recommended Changeout Pressure:35psid(2.4barg)
Toxicity
All components meet the specifications for biological safety per USP Class VI-121'C for plastics.
Sanitization/Sterilization
Filtered Hot Water 90 ℃(194°F), 30 minutes, multiple cycles,max 3 psid forward flow
Autoclave 121℃(250'F),30 min,multiplecycles
In-line Steam 135'C(275'F), 30 min, multiple cycles
Construction Materials
Filter Membrane:dual PES Membrane
Media Support: Polypropylene
End Caps: Polypropylene
Inner Core:Polypropylene
Outer Cage:Polypropylene
Sealing Method:Thermal Bonding
O-rings:Buna, Viton(or FKM), EP. Silicone,
Encapsulated Silicone,
Encapsulated Viton (or FKM)
Food Safety Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations,21CFR.
Materials used to produce filter media and hardware are safe for use in contact with foodstuffs in accordance with EU Directives 10/2011
Odder：
|
PORE SIZE |
LENGTH |
ENDCAPS |
SEAL |
CONNECTION SUPPORT |
|
0021=0.2/0.1um 0022=0.2/0.2um 0024=0.45/0.2um 0026=0.65/0.2um 0046=0.65/0.45um 0086=0.8/0.65um |
05=5" 10=10” 20=20" 30=30" 40=40" |
7=226/fin 6=226/flat 0=222/flat 5=222/fin F=DOE 2=224/fin 3=224/flat 4=222/fin(3luggs) 8=222/flat(3luggs) x=213 Inter o-ring |
B=Buna-N E=EPDM S=Silicone V=Viton |
S=With SS reinfocement |
